產品介紹/Box Header、Shrouded Header Connector

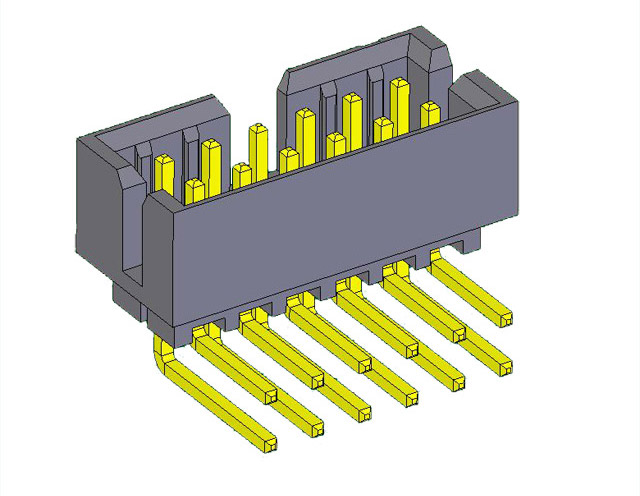

1-3014XXRG-DB
PITCH 2.0MM BOX HEADER DIP 90D 防呆
PITCH 2.0MM BOX HEADER DIP 90D 防呆
Rated Voltage：250V AC/DC
Rated Current：3A AC/DC
Contact Resistance：20mohms max
Dielectric Withstanding：500V AC
Plastic Material：PA6T,UL94V-0
Terminal：Brass
圖面下載
Rated Voltage：250V AC/DC
Rated Current：3A AC/DC
Contact Resistance：20mohms max
Dielectric Withstanding：500V AC
Plastic Material：PA6T,UL94V-0
Terminal：Brass
圖面下載
DSX-3200S-XXP-B056030
PITCH 2.0 DIP BOX HEADER 180D
PITCH 2.0 DIP BOX HEADER 180D
Rated Voltage：125V AC/DC
Rated Current：2A AC/DC
Contact Resistance：20mohms max
Dielectric Withstanding：1000V AC
Plastic Material：PA6T,UL94V-0
Terminal：Brass
圖面下載
Rated Voltage：125V AC/DC
Rated Current：2A AC/DC
Contact Resistance：20mohms max
Dielectric Withstanding：1000V AC
Plastic Material：PA6T,UL94V-0
Terminal：Brass
圖面下載
