產品介紹Product
產品介紹/Female Header Connector/Female Header ConnectorPITCH 2.0MM
1-2024XXSG-HDB

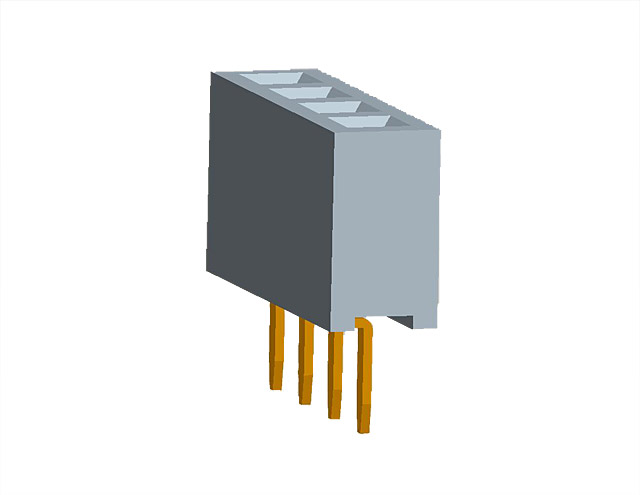

PITCH2.0MM Female Header 180D DIP 單排
PITCH 2.0MM Female Header 180D DIP 單排
Rated Voltage：125V AC/DC
Rated Current：2A AC/DC
Contact Resistance：30mohms max
Dielectric Withstanding：1000V AC
Plastic Material：PA6T、UL94V-0、BLACK
Terminal：Phosphorus Bronze
圖面下載
Rated Voltage：125V AC/DC
Rated Current：2A AC/DC
Contact Resistance：30mohms max
Dielectric Withstanding：1000V AC
Plastic Material：PA6T、UL94V-0、BLACK
Terminal：Phosphorus Bronze
圖面下載
1-2044XXSG-HDB

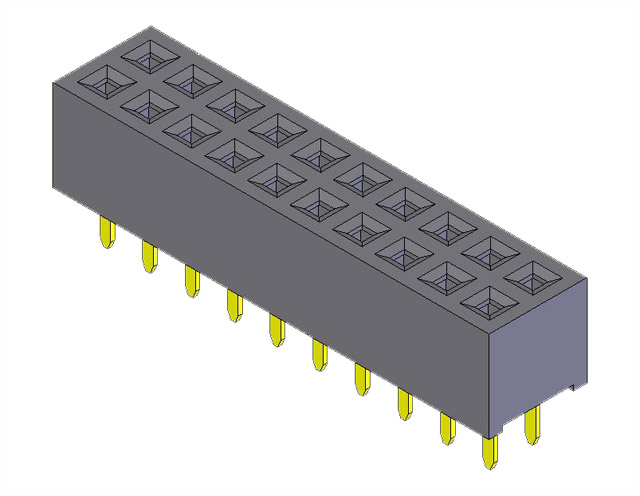

PITCH2.0MM Female Header 180D DIP 雙排
PITCH 2.0MM Female Header 180D DIP 雙排
Rated Voltage：125V AC/DC
Rated Current：2A AC/DC
Contact Resistance：20mohms max
Dielectric Withstanding：500V AC
Plastic Material：PA6T、UL94V-0、BLACK
Terminal：Phosphorus Bronze
圖面下載
Rated Voltage：125V AC/DC
Rated Current：2A AC/DC
Contact Resistance：20mohms max
Dielectric Withstanding：500V AC
Plastic Material：PA6T、UL94V-0、BLACK
Terminal：Phosphorus Bronze
圖面下載
