產品介紹Product
產品介紹/Box Header、Shrouded Header Connector/Box Header、Shrouded Header ConnectorPITCH 2.54MM
1-3012XXSG-D

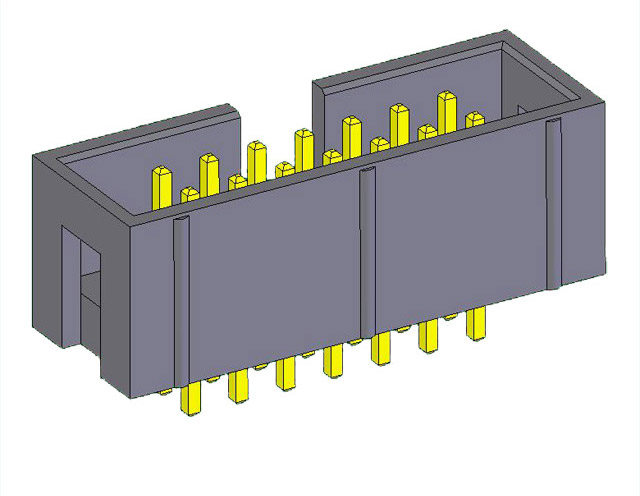

PITCH 2.54MM BOX HEADER DIP 180D
PITCH 2.54MM BOX HEADER DIP 180D
Rated Voltage：250V AC/DC
Rated Current：3A AC/DC
Contact Resistance：20mohms max
Dielectric Withstanding：1000V AC
Plastic Material：PBT,UL94V-0,Black
Terminal：Brass
圖面下載
Rated Voltage：250V AC/DC
Rated Current：3A AC/DC
Contact Resistance：20mohms max
Dielectric Withstanding：1000V AC
Plastic Material：PBT,UL94V-0,Black
Terminal：Brass
圖面下載
1-3012XXRG-D
PITCH 2.54MM BOX HEADER 90D DIP
PITCH 2.54MM BOX HEADER 90D DIP
Rated Voltage：250V AC/DC
Rated Current：3A AC/DC
Contact Resistance：20mohms max
Dielectric Withstanding：1000V AC
Plastic Material：PBT,UL94V-0,Black
Terminal：Brass
圖面下載
Rated Voltage：250V AC/DC
Rated Current：3A AC/DC
Contact Resistance：20mohms max
Dielectric Withstanding：1000V AC
Plastic Material：PBT,UL94V-0,Black
Terminal：Brass
圖面下載
1-4012XXSGS-D

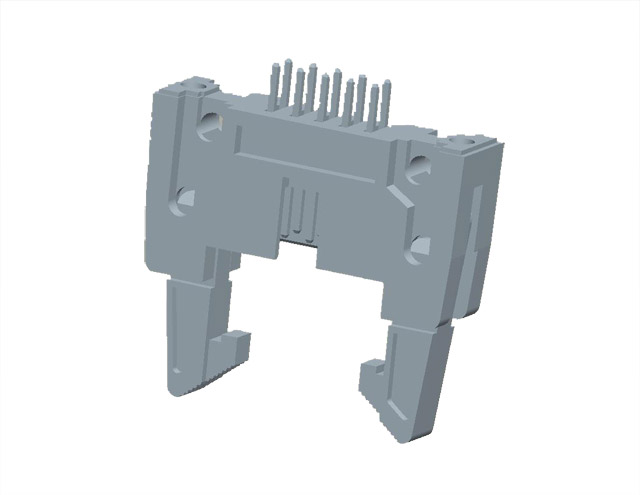

PITCH 2.54MM SHROUDED HEADER CONN 180D DIP
PITCH 2.54MM SHROUDED HEADER CONN 180D DIP
Rated Voltage：250V AC/DC
Rated Current：3A AC/DC
Contact Resistance：20mohms max
Dielectric Withstanding：1000V AC
Plastic Material：PBT,UL94V-0,Black
Terminal：Brass
圖面下載
Rated Voltage：250V AC/DC
Rated Current：3A AC/DC
Contact Resistance：20mohms max
Dielectric Withstanding：1000V AC
Plastic Material：PBT,UL94V-0,Black
Terminal：Brass
圖面下載
1-4012XXRGG-D

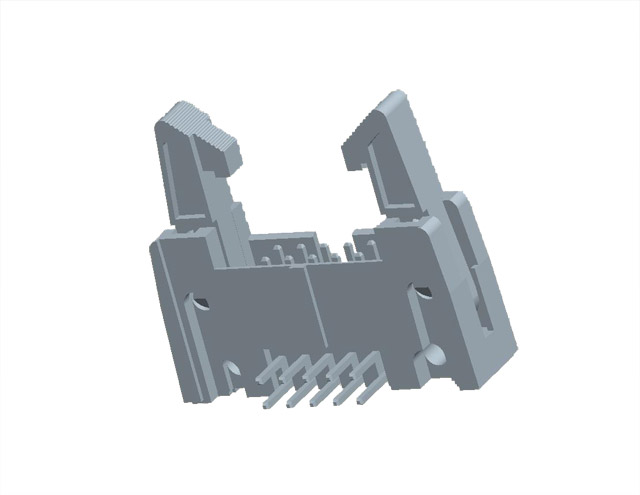

PITCH 2.54MM SHROUDED HEADER CONN 90D DIP
PITCH 2.54MM SHROUDED HEADER CONN 90D DIP
Rated Voltage：250V AC/DC
Rated Current：3A AC/DC
Contact Resistance：20mohms max
Dielectric Withstanding：1000V AC
Plastic Material：PBT,UL94V-0,Black
Terminal：Brass
圖面下載
Rated Voltage：250V AC/DC
Rated Current：3A AC/DC
Contact Resistance：20mohms max
Dielectric Withstanding：1000V AC
Plastic Material：PBT,UL94V-0,Black
Terminal：Brass
圖面下載
