產品介紹/Wire to Board Connector/Wire to Board ConnectorPITCH 3.96MM

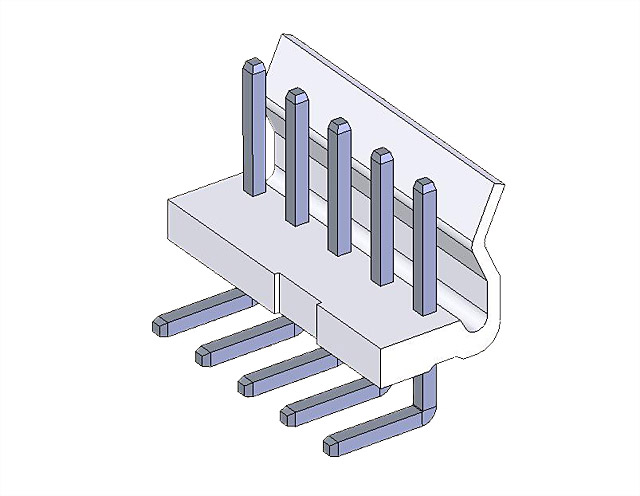

1-5018XXRT
PITCH 3.96MM WAFER DIP DIP 90° 靠背
PITCH 3.96MM WAFER DIP 90° 靠背
Rated Voltage: 300V AC/DC
Rated Current: 5A AC/DC
Contact Resistance: 30mohms max
Dielectric Withstanding: 1500V AC
Plastic Material:PA66，UL94V-2
Terminal : Brass

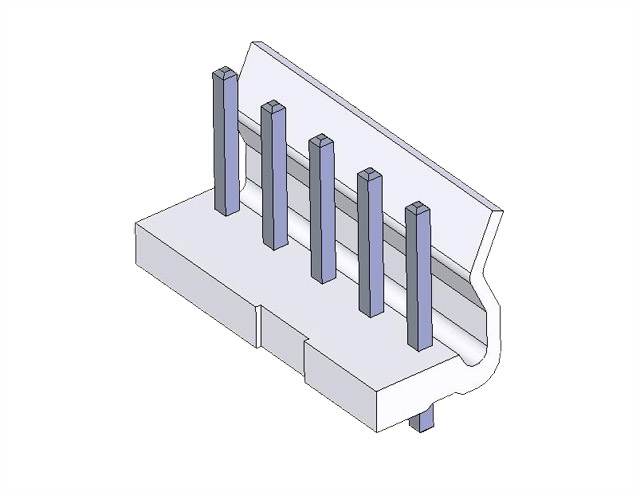

1-5018XXST
PITCH 3.96MM WAFER DIP 180° 靠背
Rated Voltage: 300V AC/DC
Rated Current: 5A AC/DC
Contact Resistance: 30mohms max
Dielectric Withstanding: 1500V AC
Plastic Material:PA66，UL94V-2
Terminal : Brass
