產品介紹/Wire to Board Connector/Wire to Board ConnectorPITCH 2.54MM

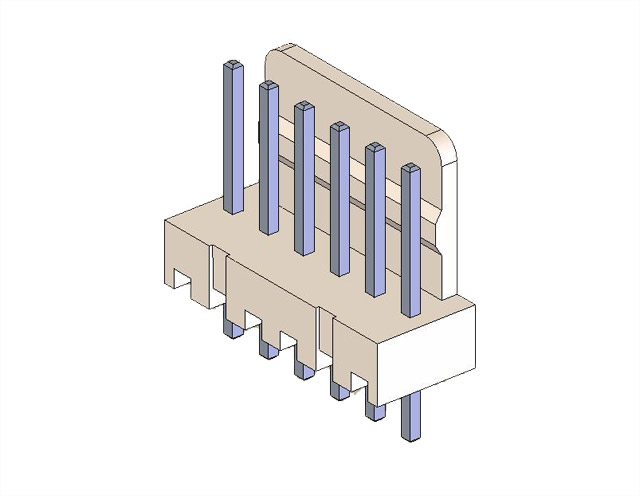

1-5017XXST
PITCH 2.54MM WAFER DIP 180° 靠背
PITCH 2.54MM WAFER DIP 180° 靠背
Rated Voltage: 250V AC/DC
Rated Current: 5A AC/DC
Contact Resistance: 30mohms max
Dielectric Withstanding: 1500V AC
Plastic Material:PA66，UL94V-0
Terminal : Brass

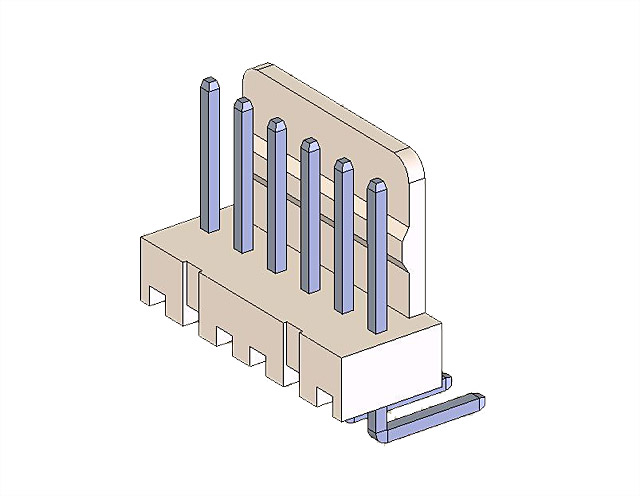

1-5017XXRT-D
PITCH 2.54MM WAFER DIP 90° 靠背
PITCH 2.54MM WAFER DIP 90° 靠背
Rated Voltage: 250V AC/DC
Rated Current: 3A AC/DC
Contact Resistance: 30mohms max
Dielectric Withstanding: 500V AC
Plastic Material:PA66，UL94V-2
Terminal : Brass
DSX-52541SA-XXP-AVT330
2.54mm DIP 180° Short back wafer
PITCH 2.54mm DIP 180° Short back wafer
Rated Voltage: 250V AC/DC
Rated Current: 4A AC/DC
Contact Resistance: 10mohms max
Dielectric Withstanding: 1000V AC
Plastic Material:PA66，UL94V-2
Terminal : Brass
圖面下載
