產品介紹Product
產品介紹/Wire to Board Connector/Wire to Board ConnectorPITCH 2.5MM
1-5014XXST-034-KA-T2

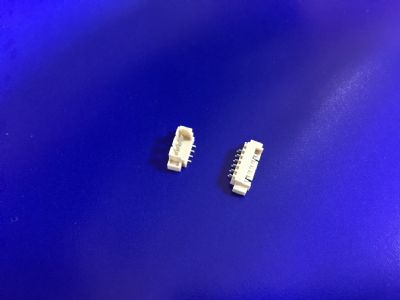

PITCH2.5MM Wafer DIP 180°
PITCH 2.5MM Wafer DIP 180°
Rated Voltage: 250V AC/DC
Rated Current: 3A AC/DC
Contact Resistance: 20mohms max
Dielectric Withstanding: 800V AC
Plastic Material: PA66 ,UL94V-2
Terminal :Brass
1-5015XXRT-KA-T2
PITCH 2.5MM Wafer DIP 90°
PITCH 2.5MM Wafer DIP 90°
Rated Voltage: 250V AC/DC
Rated Current: 3A AC/DC
Contact Resistance: 10mohms max
Dielectric Withstanding: 800V AC
Plastic Material: PA66 ,UL94V-0
Terminal :Brass
