產品介紹Product
產品介紹/Wire to Board Connector/Wire to Board ConnectorPITCH 1.0MM
DSC-51001MSA-XP-CNWTWT

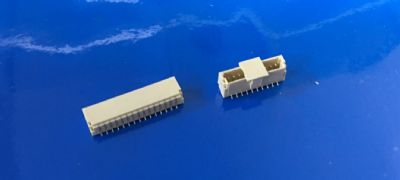

PITCH 1.0 Single Row S/T SMD
PITCH 1.0 Single Row S/T SMD
Rated Voltage: 50V AC/DC
Rated Current: 1A AC/DC
Contact Resistance: 20mohms max
Dielectric Withstanding: 500V AC
Plastic Material: LCP ,UL94V-0,
Terminal : Phosphor Bronze
圖面下載
DSR-51001MRA-XXP-CNWTWT
PITCH 1.0 Wire to Board Single Row SMD R/A
PITCH 1.0 Wire to Board Single Row SMD R/A
Rated Voltage: 50V AC/DC
Rated Current: 1A AC/DC
Contact Resistance: 20mohms max
Dielectric Withstanding: 500V AC
Plastic Material: LCP ,UL94V-0,
Terminal : Phosphor Bronze
1-5046XXMSG-CX-T3

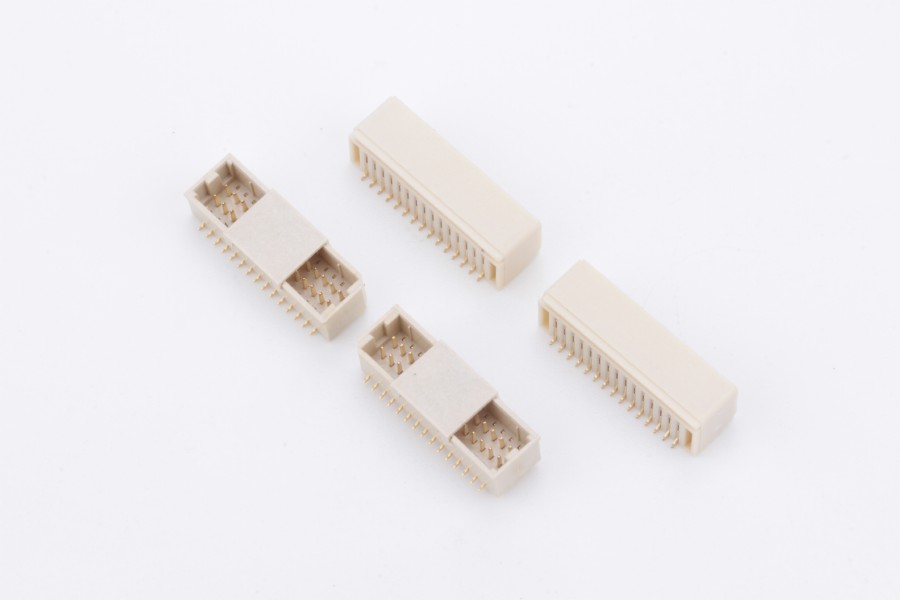

PITCH 1.0 Wire to Board Dual S/T SMD
PITCH 1.0 Wire to Board Dual S/T SMD
Rated Voltage: 50V AC/DC
Rated Current: 1A AC/DC
Contact Resistance: 20mohms max
Dielectric Withstanding: 500V AC
Plastic Material: LCP ,UL94V-0,
Terminal : Phosphor Bronze
1-5046XXMRT-056E

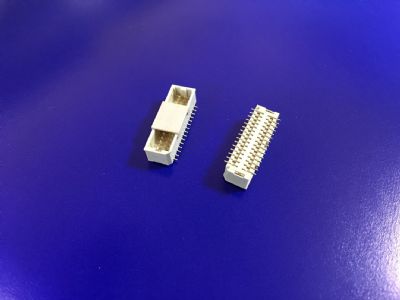

PITCH 1.0 Wire to Board Dual Row R/A SMD
PITCH 1.0 Wire to Board Dual Row R/A SMD
Rated Voltage: 50V AC/DC
Rated Current: 1A AC/DC
Contact Resistance: 20mohms max
Dielectric Withstanding: 500V AC
Plastic Material: PA9T ,UL94V-0,
Terminal : Phosphor Bronze
